How to Fix USB is Not Showing Up on Mac Issue: 6 Solutions

493
usb not showing up on mac

If your USB is not showing up on Mac, it may have suffered logical damage and became unreadable. Fortunately, we can fix most cases of logical damage with tools we already have in our Macs. These methods are also relatively easy to do, even for those who aren’t power users.

By the end of this article, you will have a good idea of what caused Mac not recognizing your USB, how to fix this issue, and even how to recover your data once it’s repaired. Read on.

How to Find a USB Drive on Mac

USB drives and other external storage devices appear in multiple locations on your Mac, so you can access them in different scenarios. With a problematic drive, even if it doesn’t show up in one location, it may still show up in another. Here’s how to find your USB drive on Mac:

Desktop
External drives appear as mounted volumes on your desktop.USB disk icon on the desktop

Finder

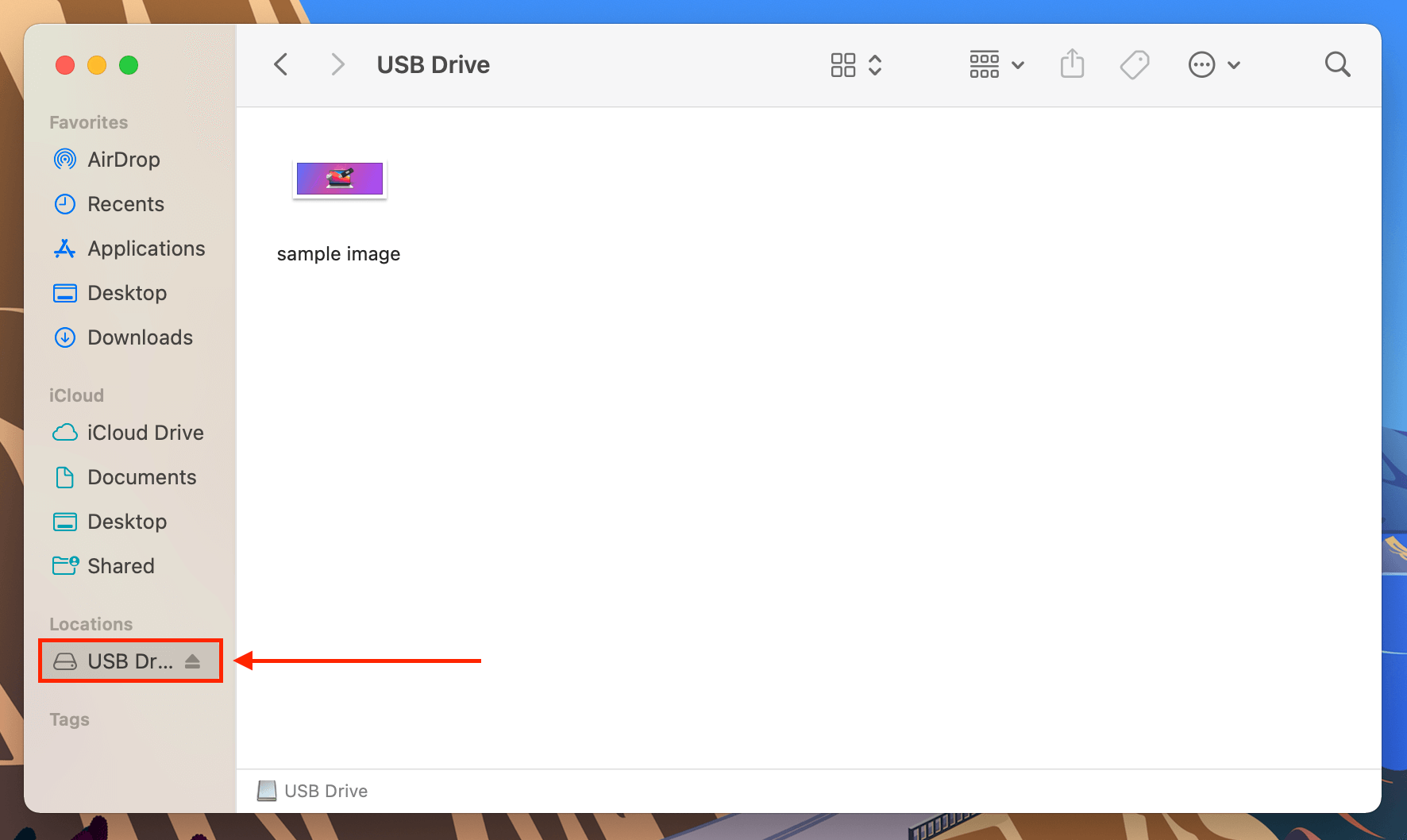

Mounted drives appear on the left sidebar of your Finder window.USB drive in the Finder sidebar

System Information
On the Apple menu, click the Apple icon > About This Mac > Storage tab.
Storage tab in the System Information window

Disk Utility

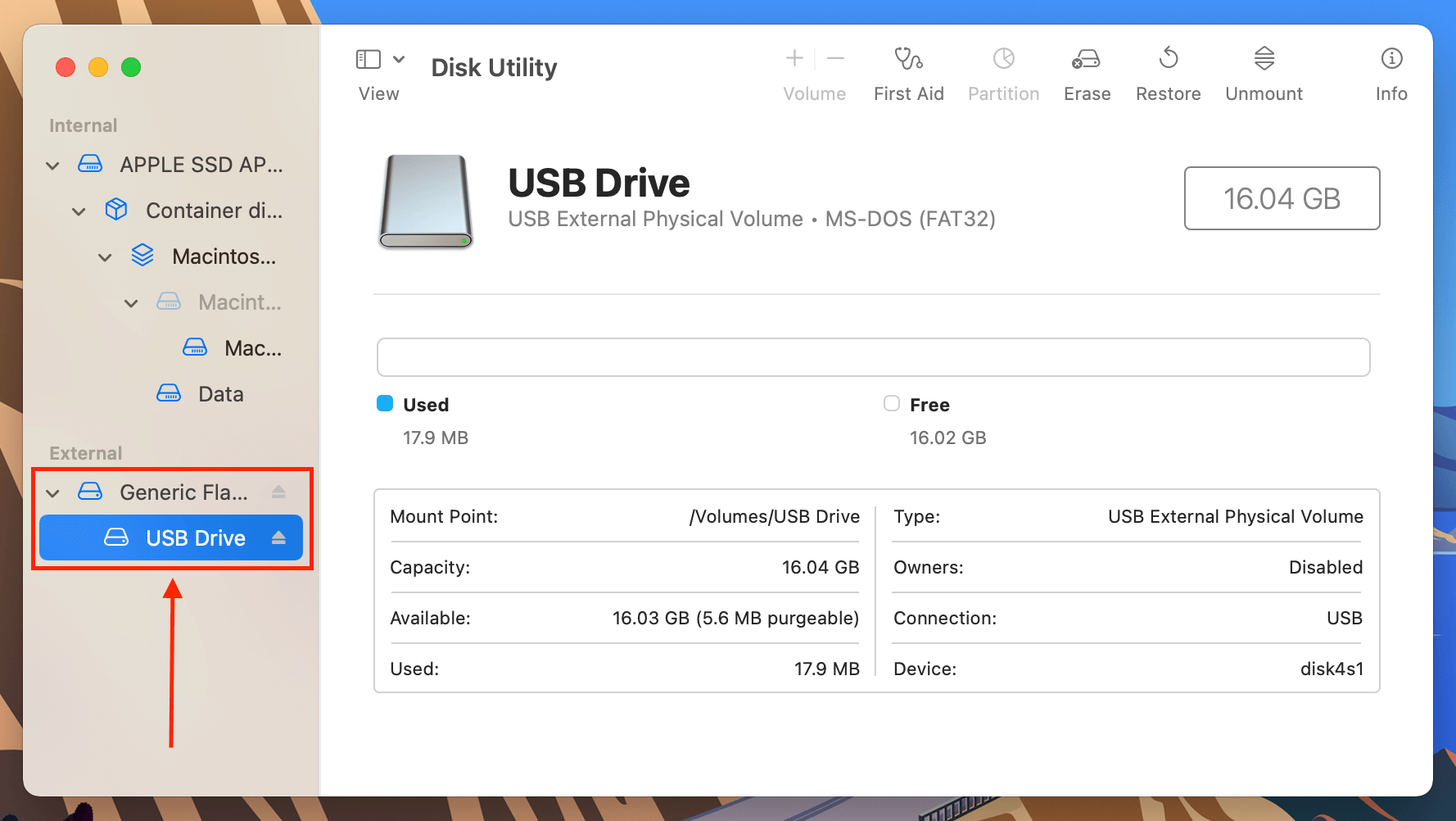

Launch Disk Utility by opening Finder > Applications > Utilities > Disk Utility.
USB flash drive in Disk Utility

💡Tip: To see all volumes, click the “View” button on the top-left corner of the window (outside the sidebar).

How to Fix a USB That is Not Showing Up on Mac

Here’s some good news: for as long as your USB drive only suffered “logical damage” – such as drive corruption, virus infection, accidental formatting, etc., you can safely repair it yourself. These are common problems that could be the cause of your flash drive not showing up on Mac.

Fortunately, Mac provides free native tools for users to troubleshoot the problem themselves. Below are the best DIY fixes that you can do right now to repair your USB, using tools already provided by Mac.

Fix #1 Try another port or device.

First, make sure that your USB is really the problem. Try connecting it to another port or computer. Likewise, try using another USB on the same ports and check if your computer recognizes it.

Fix #2 Check your Mac’s external drive display settings.

Mac allows users to set whether external drives are displayed in Finder and on the Desktop. You or an app may have changed the settings by mistake, which is why your thumb drive is not showing up on Mac. Do the following steps to make sure your external drive display is enabled:

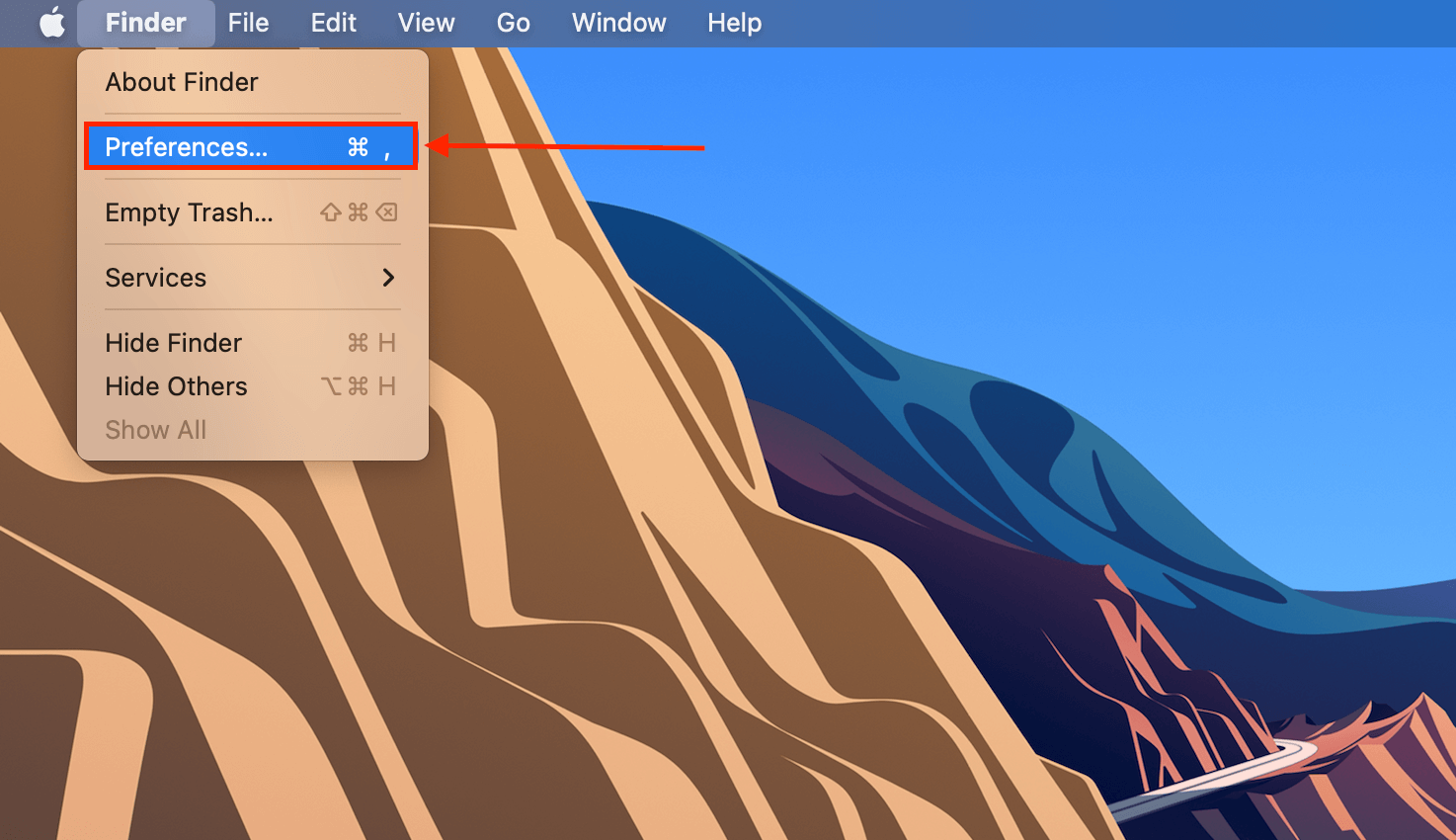

Step 1. Make sure Finder is open. Then, click “Finder” on the Apple menu bar, then “Preferences.”
Preferences option in the Finder menu

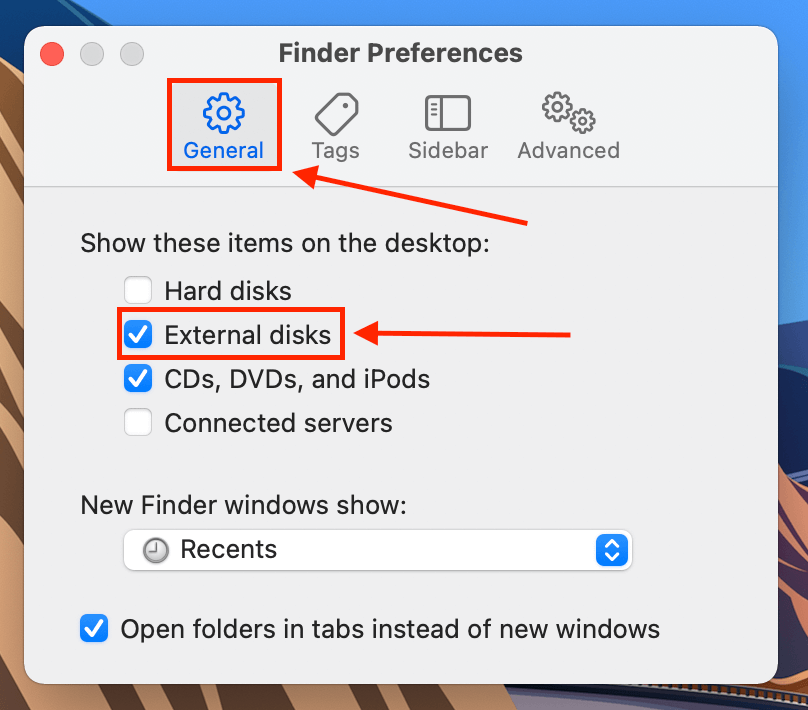

Step 2. Click on the General tab, then make sure the checkbox beside “External disks” is ticked.
General tab in the Finder Preferences window

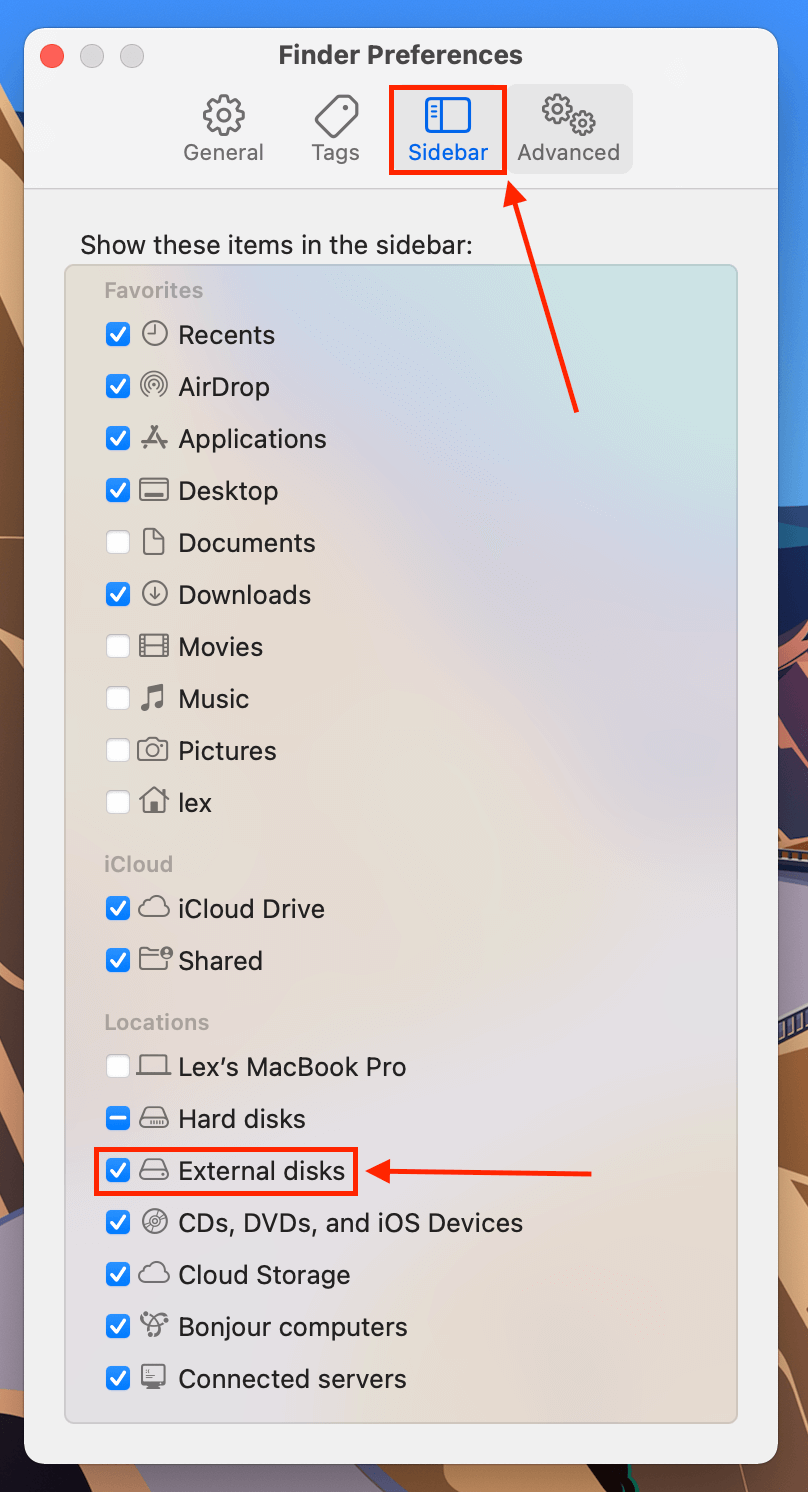

Step 3. Do the same in the Sidebar tab under the “Locations” section.
Sidebar tab in the Finder Preferences window

Fix #3 Update your drivers.

It’s also possible that your Mac is using outdated drivers, which may be why Mac won’t recognize your USB. To update your drives, open System Preferences > Software Update (yes, you’ll have to update the whole macOS to update your drivers).
Software Update app in the System Preferences window

Fix #4 Mount (or remount) USB drive.

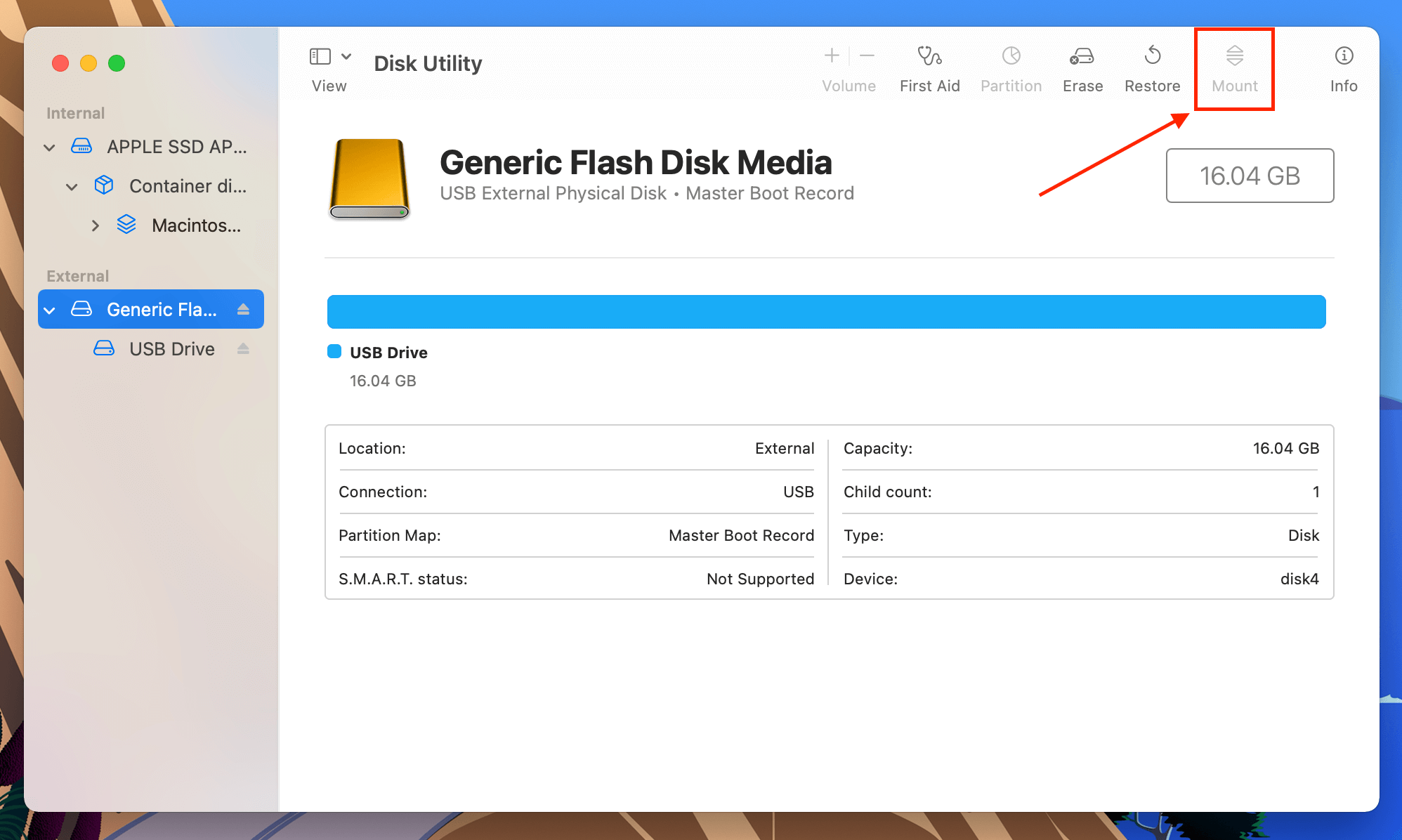

Your operating system might have gotten interrupted while mounting your USB, or your USB had been mounted improperly – this commonly happens when using faulty connectors or Mac ports. In many cases, Disk Utility will still be able to detect a USB even if macOS doesn’t. Open Disk Utility and try mounting/remounting your USB.
Mount button in the Disk Utility window

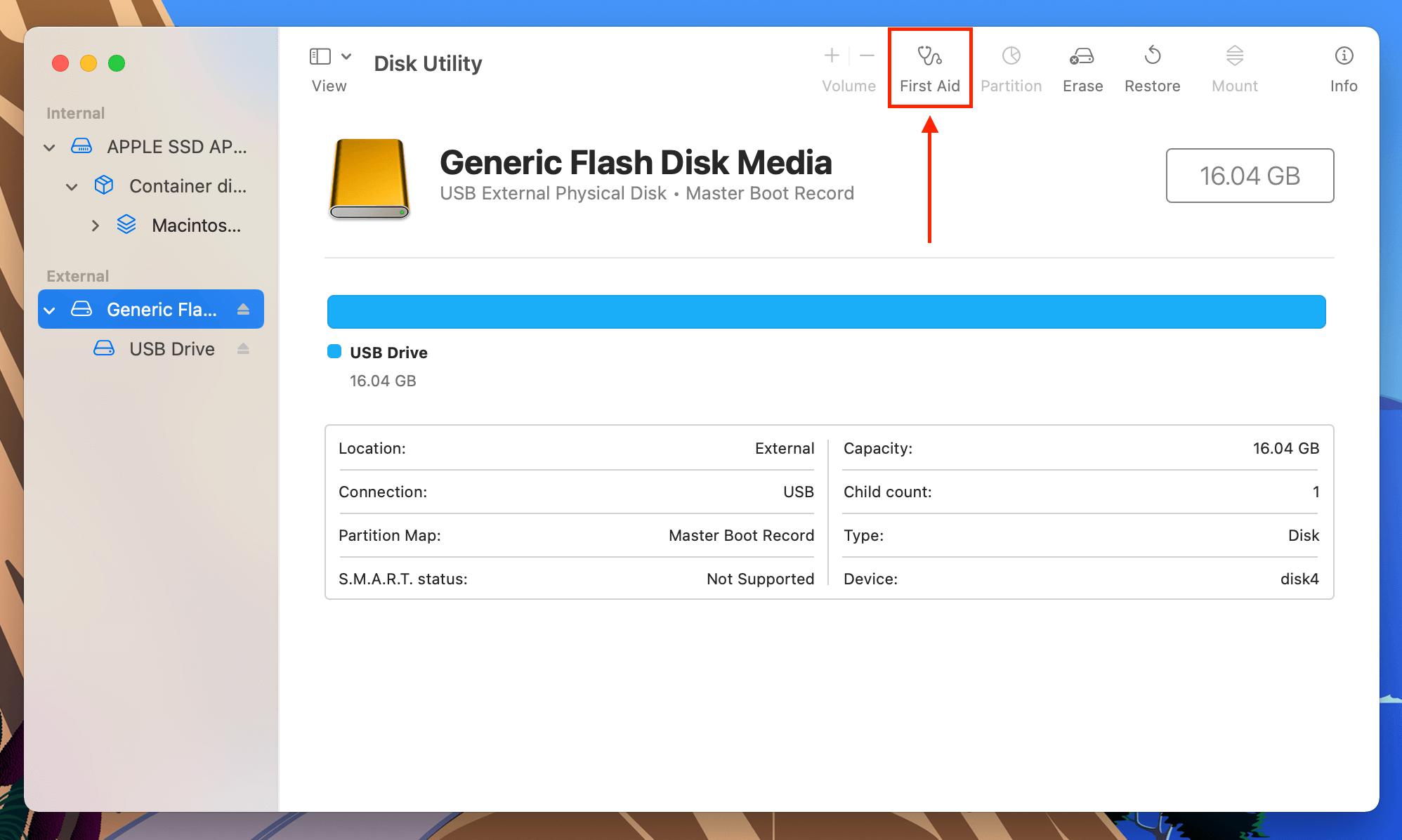

Fix #5 Use Disk Utility’s First Aid tool.

Disk Utility also has a repair tool that scans for and fixes disk errors, mostly related to formatting and directory structure. It could possibly solve issues like your Mac not recognizing your USB device. To use it, open Disk Utility, select your USB, then click “First Aid.”
First Aid button in the Disk Utility window

Fix #6 Reformat your drive to the file systems recognized by Mac.

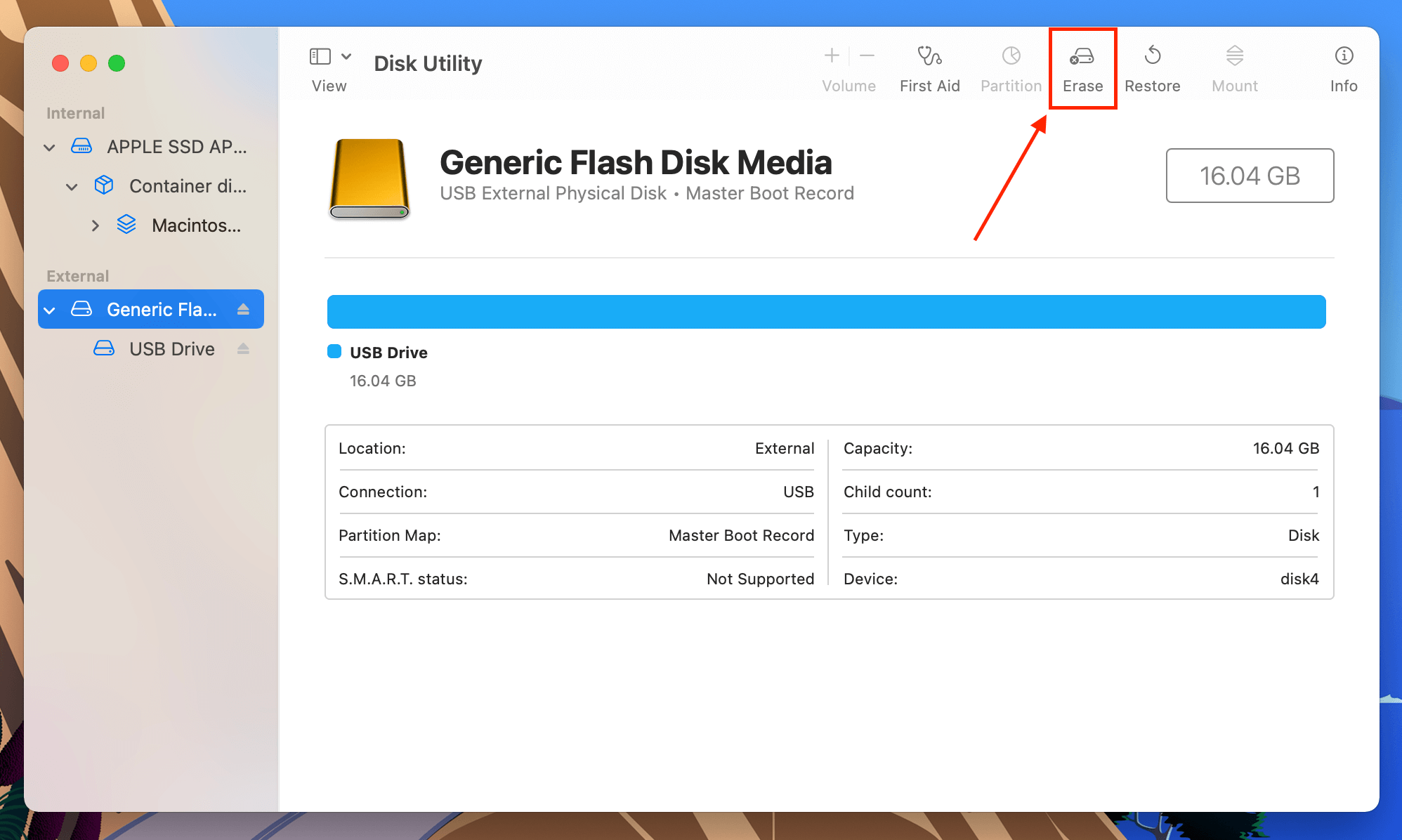

Mac can recognize the following file systems: APFS, HFS/HFS+, NTFS, exFAT, FAT32, and ext2. Your drive may be using a different file system, which is why your Mac doesn’t recognize the USB. You’ll have to reformat your USB to a file system Mac does recognize. Again, Disk Utility is the tool of choice. Simply launch it and click the “Format” button at the top-right half of the window.

💡Tip: Format your USB to FAT32, as it is the most compatible file system and is commonly used across multiple devices.

Erase button in the Disk Utility window

Formatting a drive will wipe all data on the disk. Make sure to follow the data recovery section below after doing a format.

How to Recover Data From a USB Drive

Once your Mac properly recognizes your USB drive, check if all of your data is intact. When a storage device suffers damage, it’s best to expect that there will be data loss – even after fixing it. Some fixes (such as formatting) also cause this data loss for the sake of cleaning up the file system.

This section of the article focuses on recovering data from your USB drive. The most efficient (and cost-effective) way of doing this is by using data recovery software. For the sake of this guide, we’ll be using Disk Drill – a tool we often recommend to our readers due to its ease-of-use and high recovery rate. Don’t worry though, the process is similar for most data recovery tools.

Step 1. Make sure your USB is securely connected to your Mac, then download and install Disk Drill.

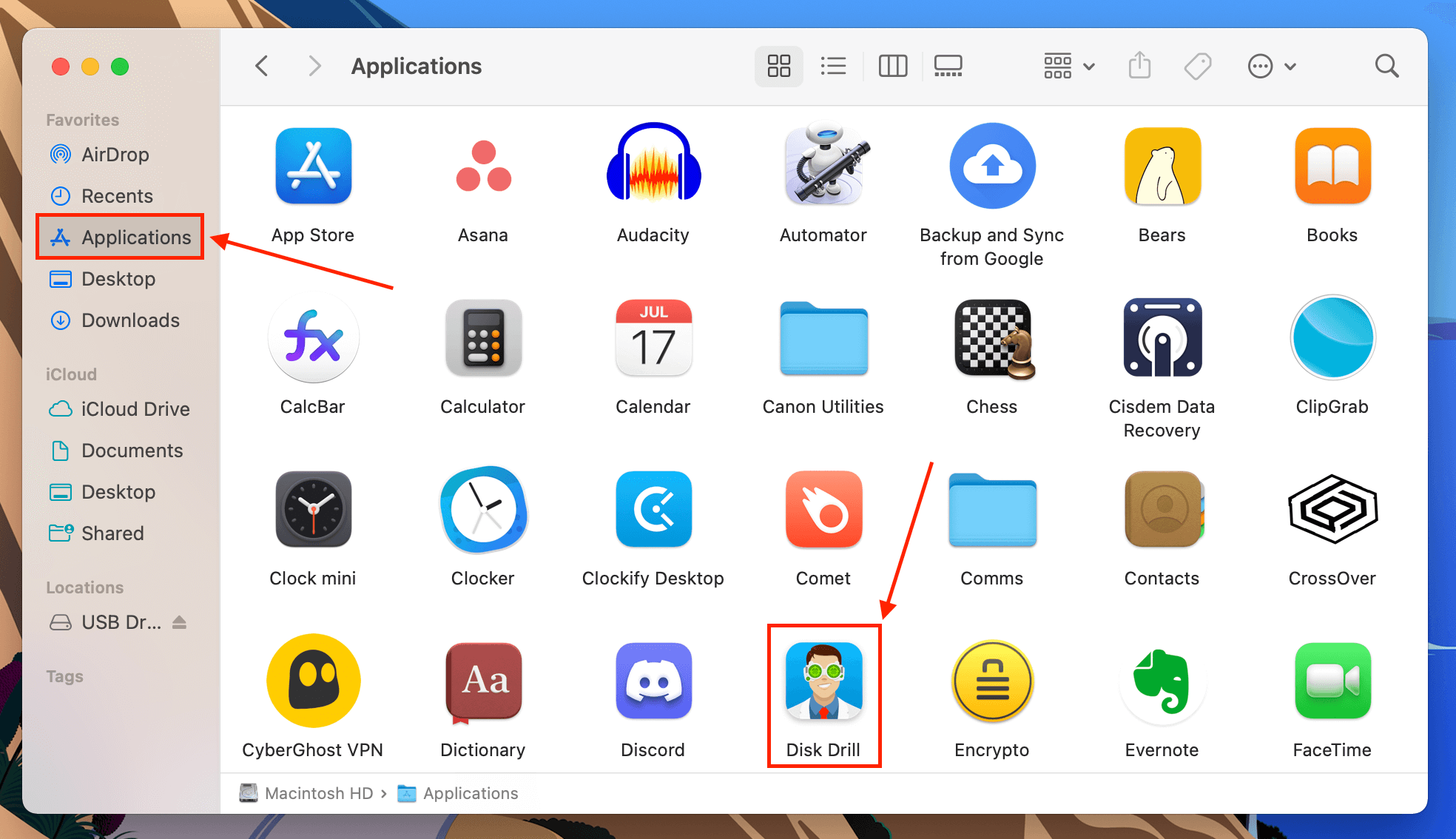

Step 2. Launch Disk Drill by opening Finder > Applications > Disk Drill and double-clicking its icon.
Disk Drill icon in the Finder Applications folder

Step 3. At this point, there are two options. First, you can create an image backup of your drive and scan that instead. This is the preferred method if the USB is physically damaged, and we’ll show you how to do it in the following steps. If you want to recover your USB drive directly, skip to step 8.

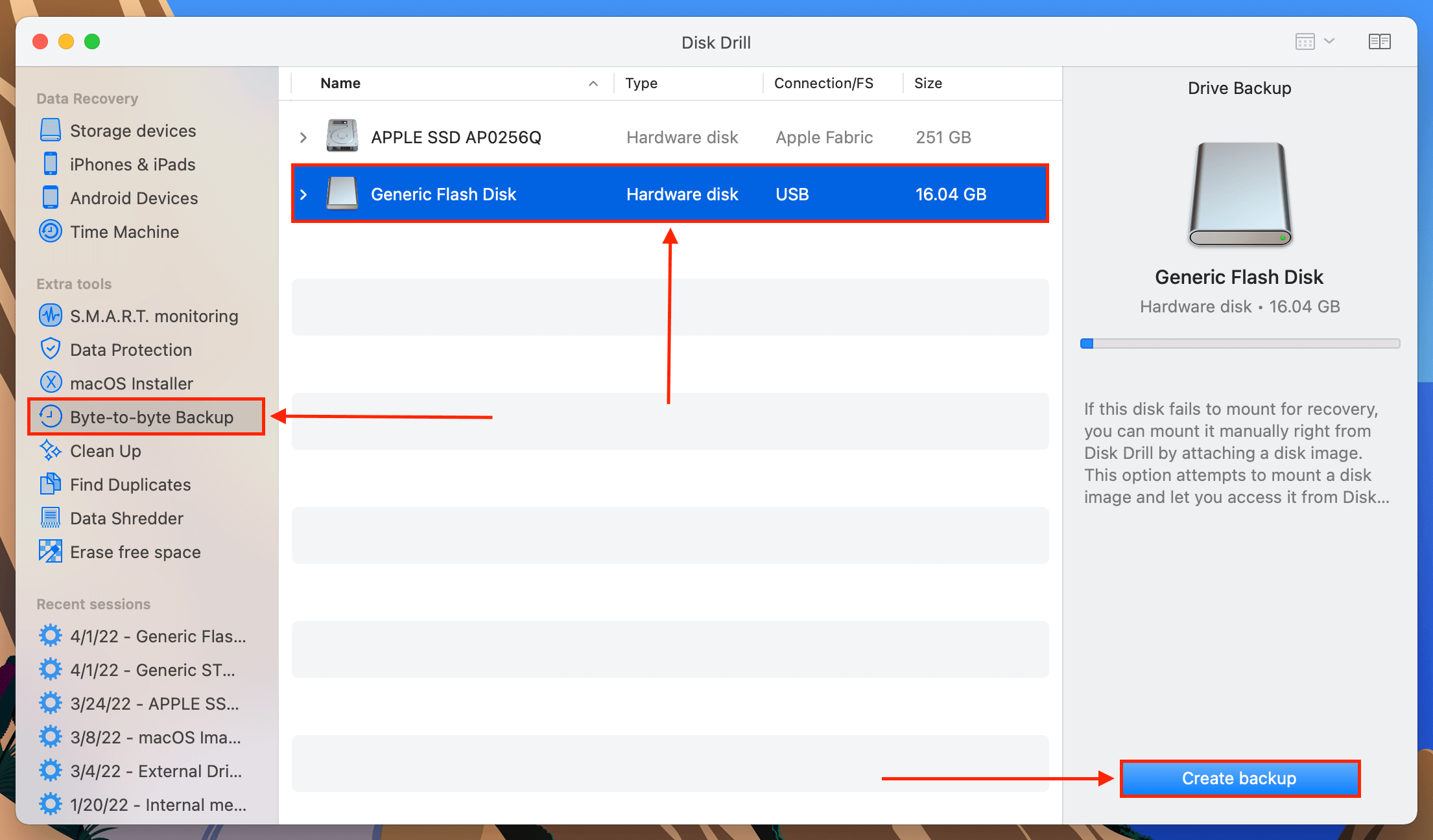

Step 4. On the left sidebar, select “Byte-to-byte backup.” Then, select your USB from the list, then click “Create backup.”
Disk Drill Byte-to-byte backup window

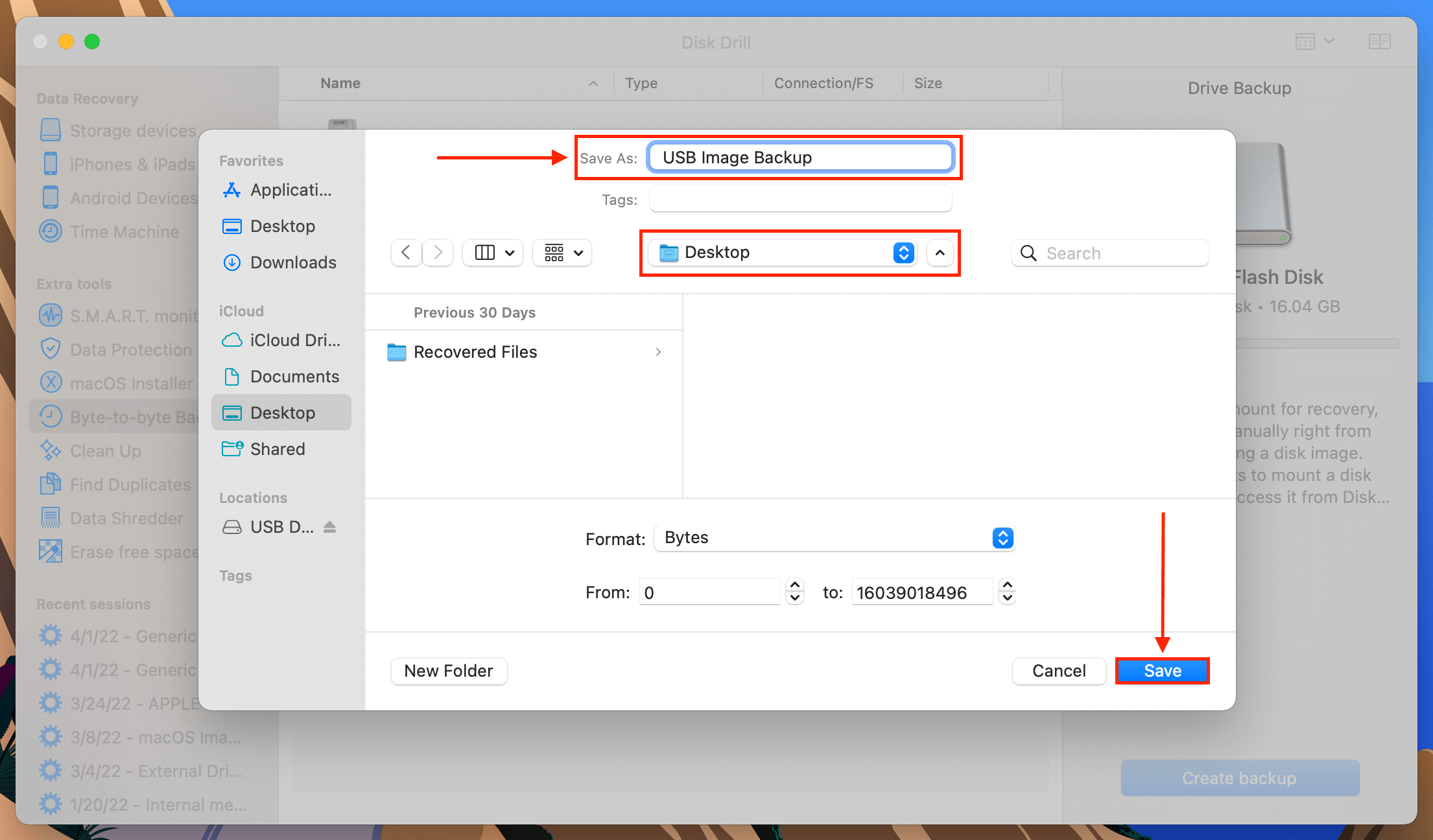

Step 5. Name your image backup, select a location on your computer to save the backup file, then click “Save.”
Disk Drill image backup save dialogue

Step 6. Wait for the process to complete. You can then double-click the image backup file to mount it.
Image backup file icon on the Desktop

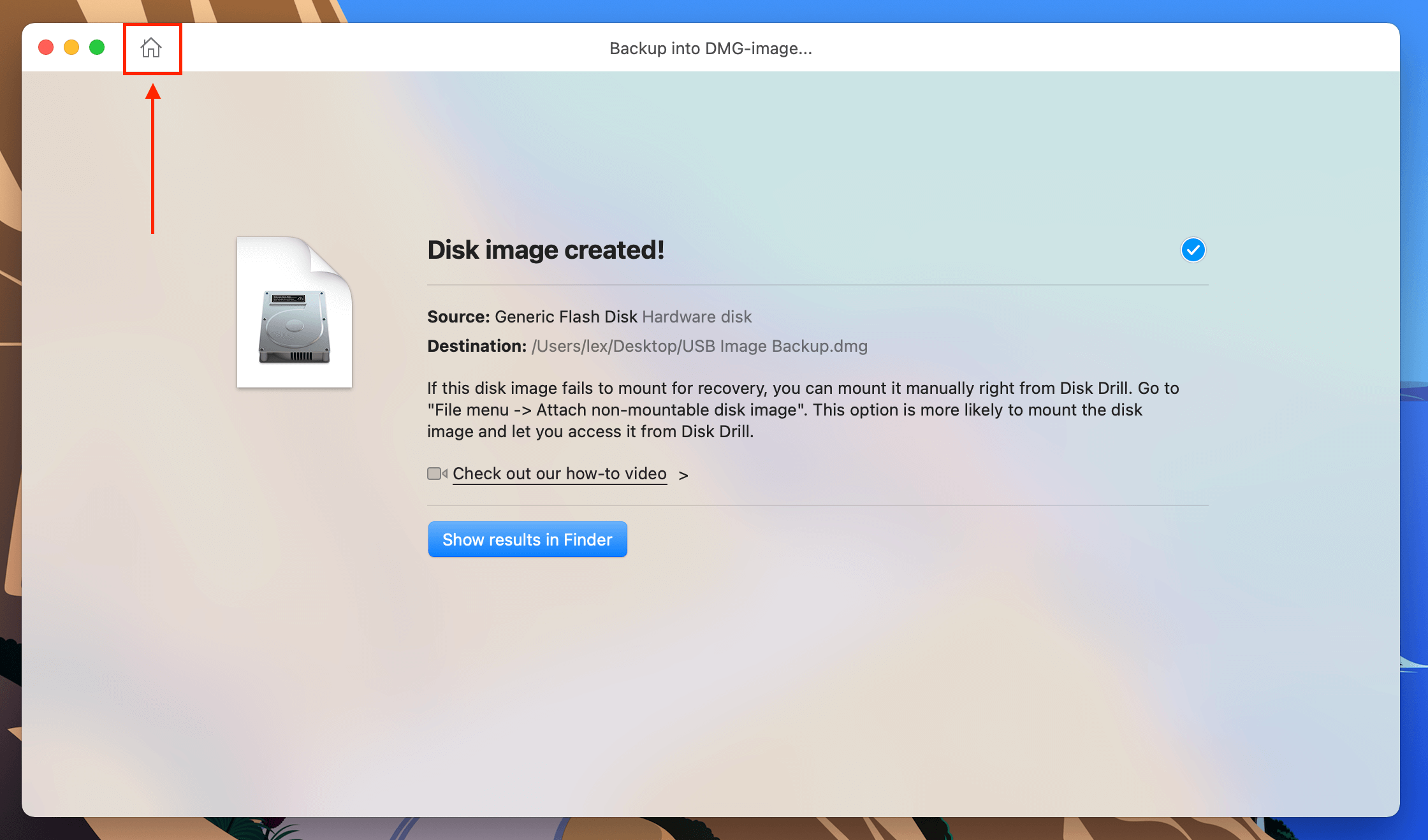

Step 7. Return to Disk Drill’s home screen using the home button.
Home button in Disk Drill's byte-to-byte backup window

Step 8. Select “Storage devices” under “Data Recovery” in the left sidebar. Then, select your backup disk (or your USB if you’re recovering it directly), and click “Search for lost data.”
Disk Drill drive selection window

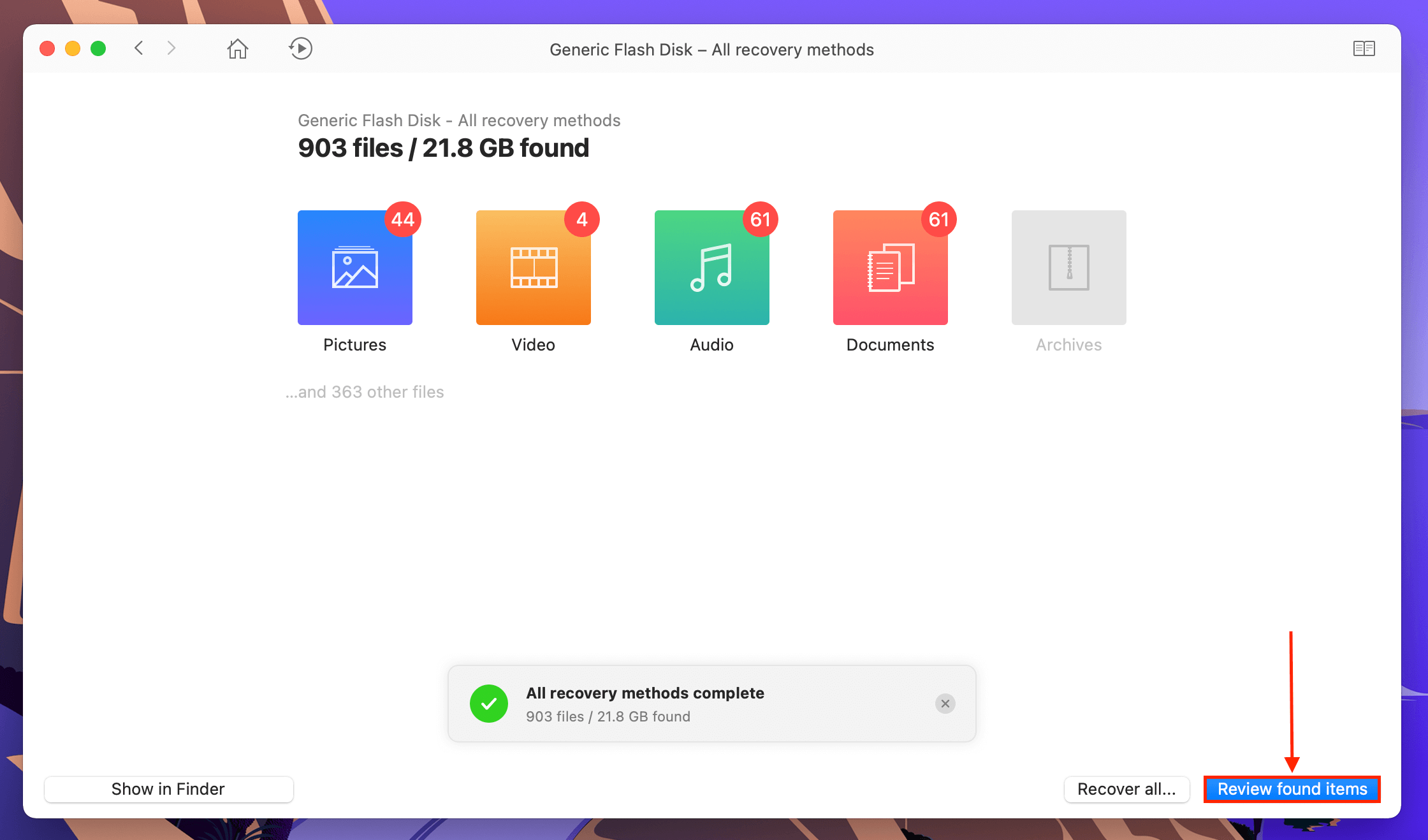

Step 9. Disk Drill will now scan your drive. Wait for the process to complete, then click “Review found items.”
Disk Drill scanning window

Step 10. You can filter the results by using the sidebar on the left, or search for specific files using the search bar on the top-right corner of the window.
Disk Drill search bar and navigational sidebar

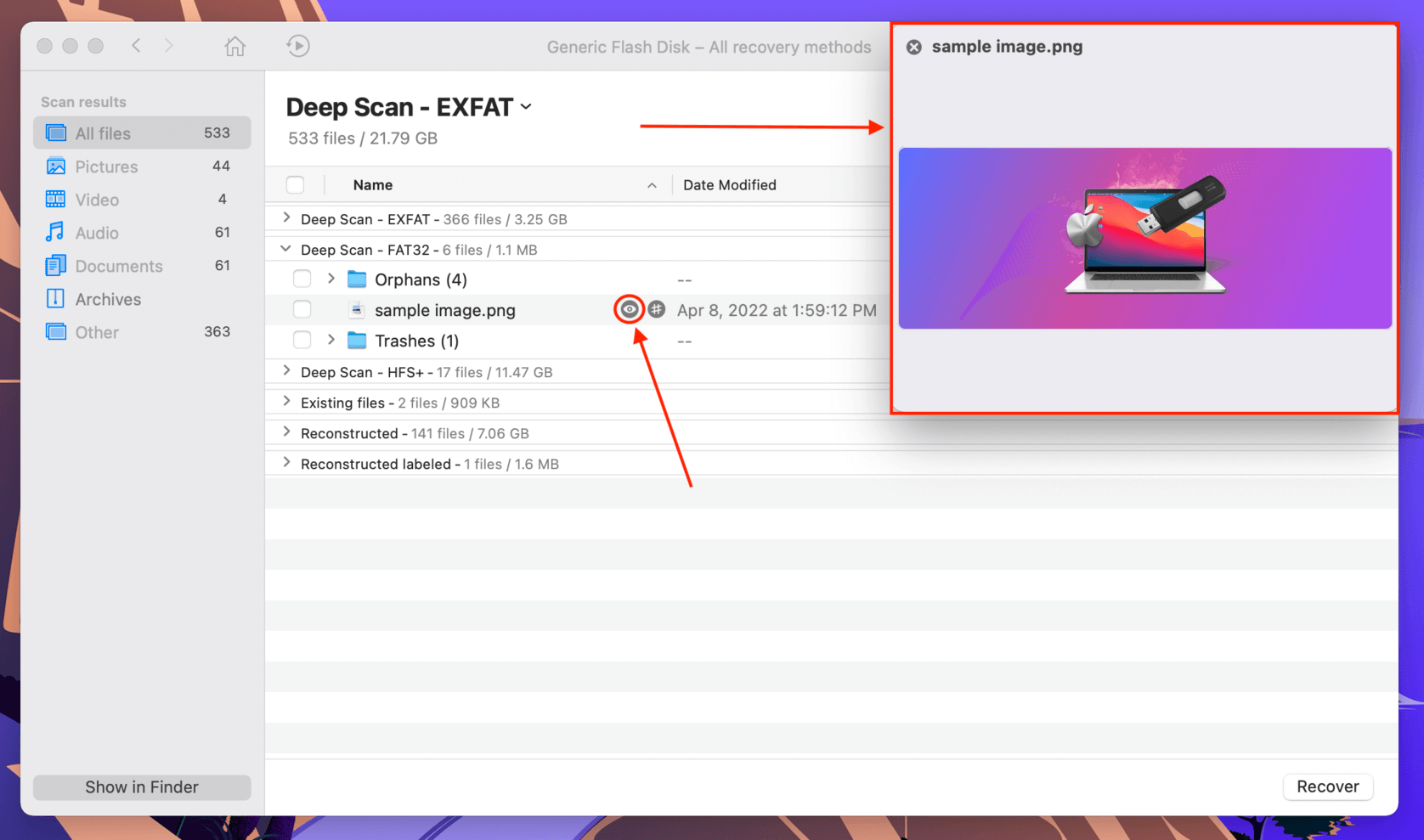

Step 11. Preview files by moving your mouse pointer to the right of their file names and clicking the eye button that pops up.
Disk Drill image preview

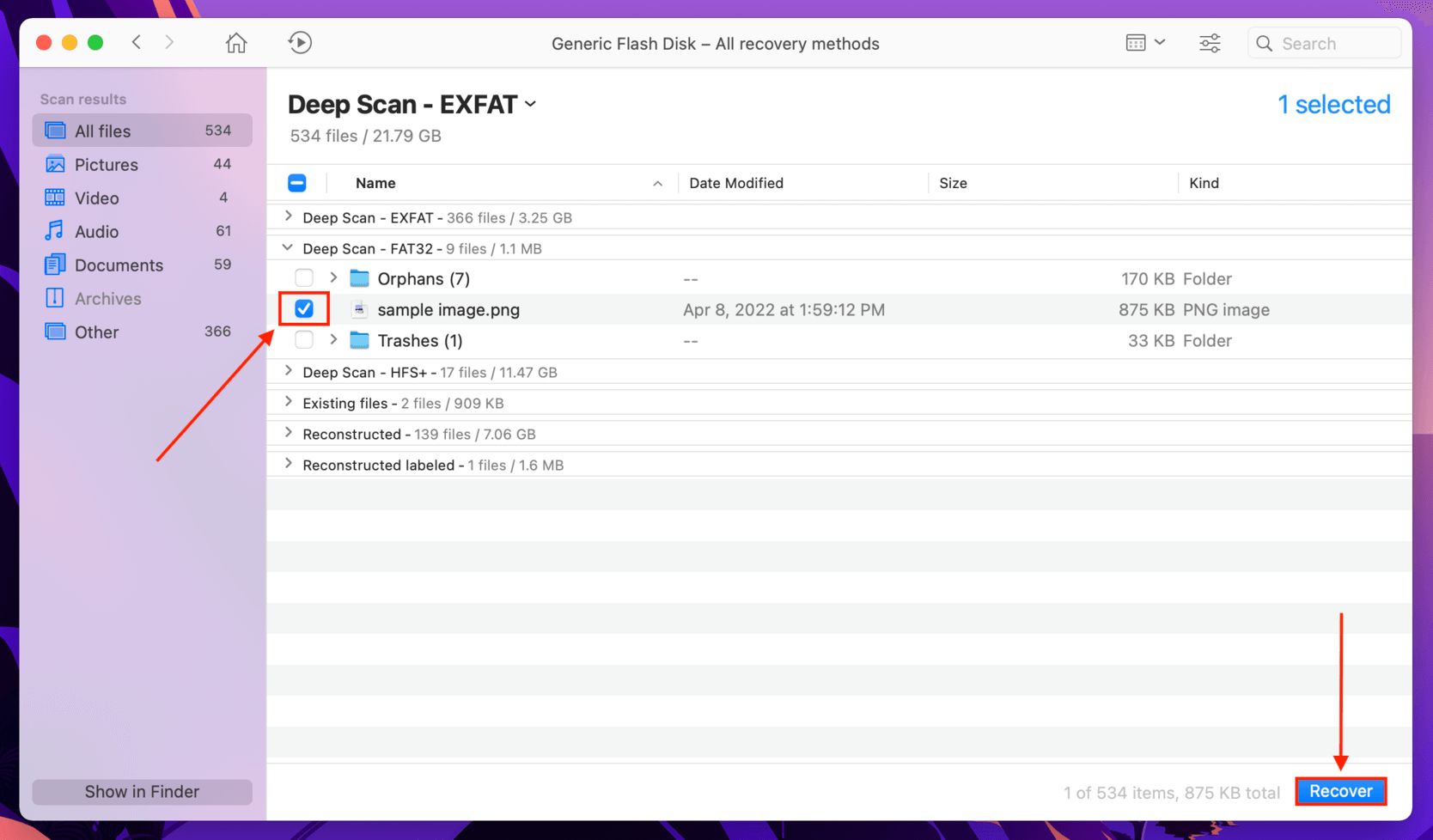

Step 12. Use the checkboxes in the left-most column to select the files you want to recover, then click “Recover.”
Disk Drill file selection

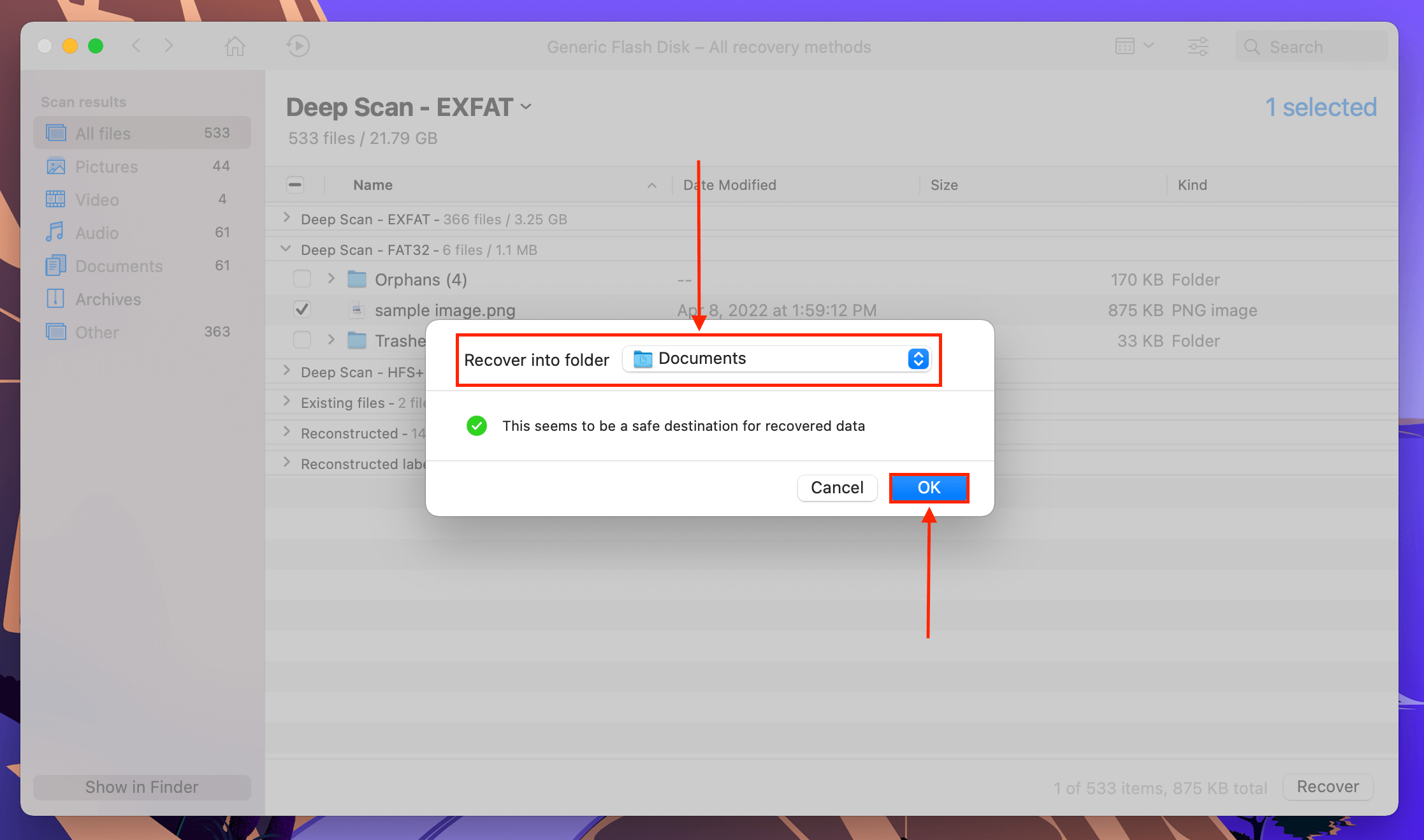

Step 13. Choose a folder on your computer where you want Disk Drill to save the recovered files. Don’t save it to your USB – you might end up overwriting the existing data. Then, click “OK.”
Disk Drill save file dialogue box

Disk Drill for Mac doesn’t offer free data recovery, but it does offer unlimited preview – this is super useful for figuring out if you can recover your data using software. If you can’t preview your files, your drive may be physically damaged – immediately stop using it and send it to a professional data recovery center.
